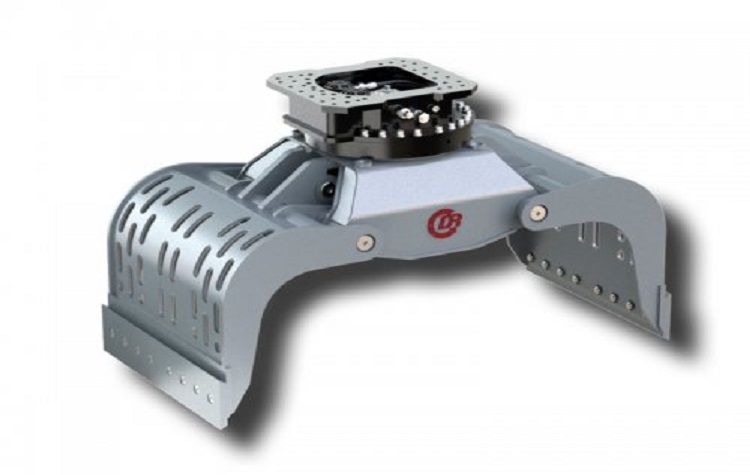

The Kinshofer heavy duty selector grabs are a proven concept that can be applied widely for demolition, recycling and other applications. The grabs are characterized by their extremely powerful closing strength and the robust construction of the yoke thanks to a Delta- box frame with wide pivotal points using bearings and over dimensioned pins and bearings

The Delta-box frame in combination with a single large diameter cylinder- for powerful closing- ensures low reactive forces at the hinging points. The application of a single hydraulically cushioned cylinder makes the grab easy to service and reliable because of the simplicity of the hydraulic system. The shells are equipped with a perforated shell plate made of high grade material as standard. The construction gives extra torsion rigidity to the shells, prevents material getting stuck in the shells and gives optimal visibility on the job

D15H-P-75HD: Excavators with 10 to 18t / 22000 to 39600 lbs

D16H-P-90HD: Excavators with 12 to 20 t / 26400 to 44000 lbs

D19H-P-86HD: Excavators with 13 to 24t / 264000 to 52800 lbs

D20H-P-100HD: Excavators with 13 to 25t / 28600 to 55000 lbs

D24H-P-100HD: Excavators with 15 to 30t / 33000 to 66000 lbs

D32H-P-110HD: Excavators with 20 to 40t / 44000 to 88000 lbs

D40H-P-125HD: Excavators with 25 to 50t / 55000 to 110000 lbs

D50H-P-140HD: Excavators with 35 to 60t / 77000 to 132000 lbs

D70H-P-150HD: Excavators with 50 to 80t / 110000 to 176000 lbs
