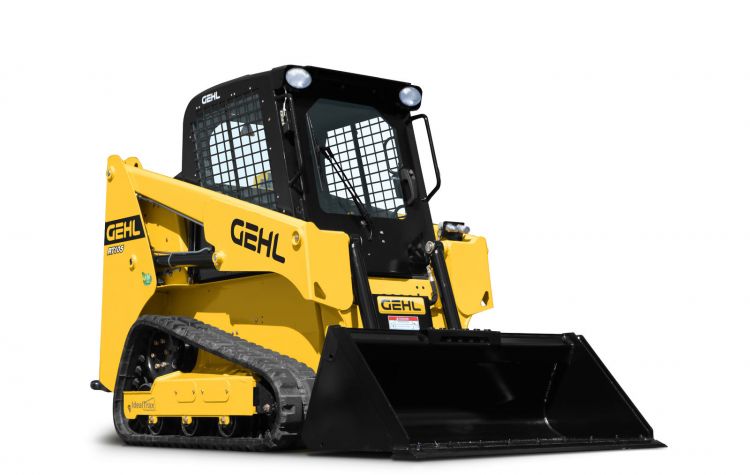

GehlGehl RT105 Track Loader

Rated Operating Capacity 35%: 479 kg

Rated Operating Capacity 50%: 680 kg

Tipping Load: 1361 kg

Operating weight: 2141 kg

Power: 35 hp

Bucket Hinge Pin Height: 2769 mm

Specifications

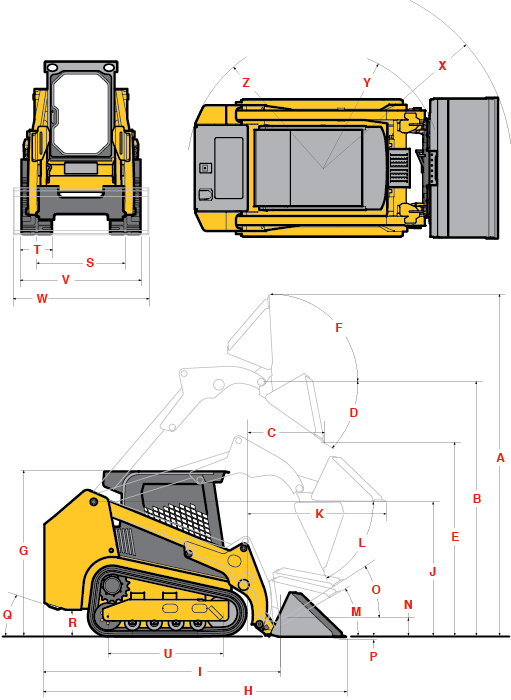

Dimensions

A   Overall Operating Height - Fully Raised 3650 mm
B   Height to Hinge Pin - Fully Raised 2769 mm
C   Reach - Fully Raised 673.1 mm
D   Dump Angle - Fully Raised 38°
E   Dump Height - Fully Raised 2134 mm
F   Maximum Rollback Angle - Fully Raised 102°
G   Overall Height at ROPS 1816 mm
H   Overall Length with Bucket - Standard Counterweight 2985 mm
I   Overall Length without Bucket - Standard Counterweight 2258 mm
J   Specified Height 1466 mm
K   Reach at Specified Height 991 mm
L   Dump Angle at Specified Height 72°
M   Maximum Rollback Angle at Ground 32°
N   Carry Position 127 mm
O   Maximum Rollback Angle at Carry Position 32°
Q   Angle of Departure with Standard Counterweight 35°
R   Ground Clearance 191 mm
S   Track Gauge 1039 mm
U   Crawler Base 1283 mm
V   Overall Width - Less Bucket 1290 mm
W   Bucket Width 1372 mm
X   Clearance Radius - Front With Bucket 1854 mm
Z   Clearance Radius - Rear with Standard Counterweight 1290 mm

Capacity

Operating Capacity at 35% Tipping Load 476 kg
Operating Weight 2141 kg

Engine

Make/Model Yanmar/3TNV88C-KMS Tier IV
Type 4-Stroke Naturally Aspirated
Displacement/Cylinders 1.64 L/4
Gross Power @ rpm 26 kW @ 2500
Peak Torque @ rpm 109 Nm
Alternator Voltage/Amperage 12V/55A

Track Drives

Track Type/Track Rollers/Roller Type Rubber/3/Steel
Track Width 250 mm

Volume

Fuel Tank 36 L
Hydraulic Reservior Tank 30 L
Coolant Capacity 6.62 L

Hydraulics

Auxiliary Hydraulic Flow - Rated Speed 55 L/min
Transmission Pump Type Axial Piston Variable Double Pump
Motor Type Radial Piston Motor w/ Two Speed

Electronic System

Battery Volts 12V
Cold Cranking Amps at Temperature 800 CCA @ -18°C

Sound & Vibration

Sound Power (Environmental) 101 dB(A)
Operator Ear 85 dB(A)
