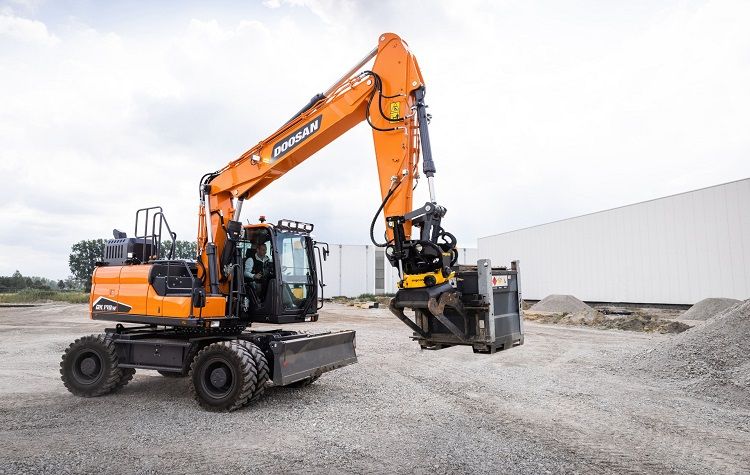

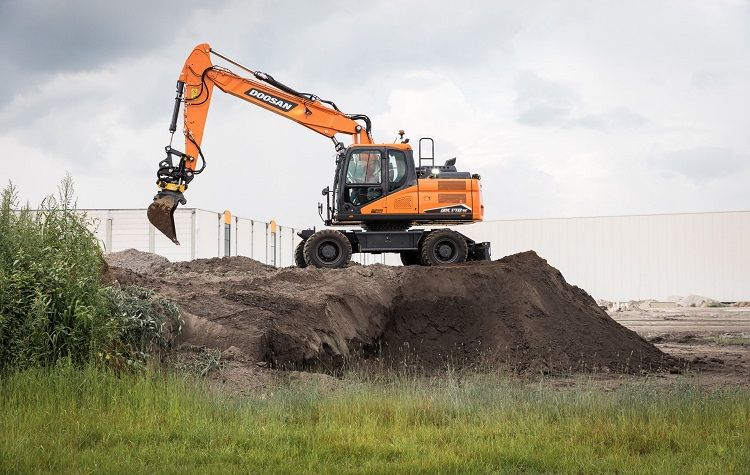

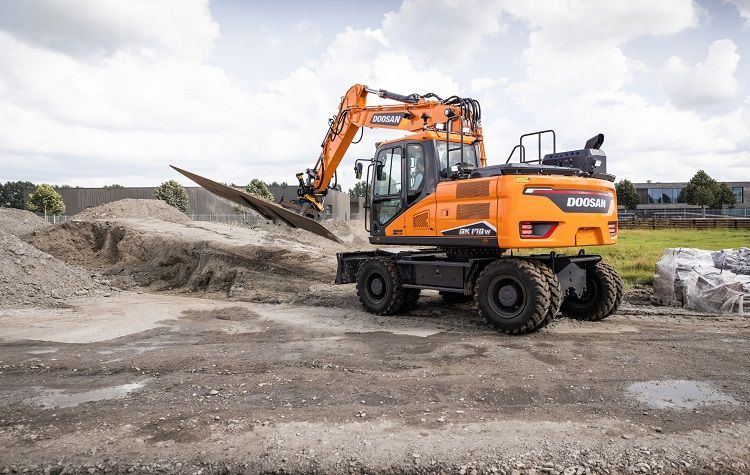

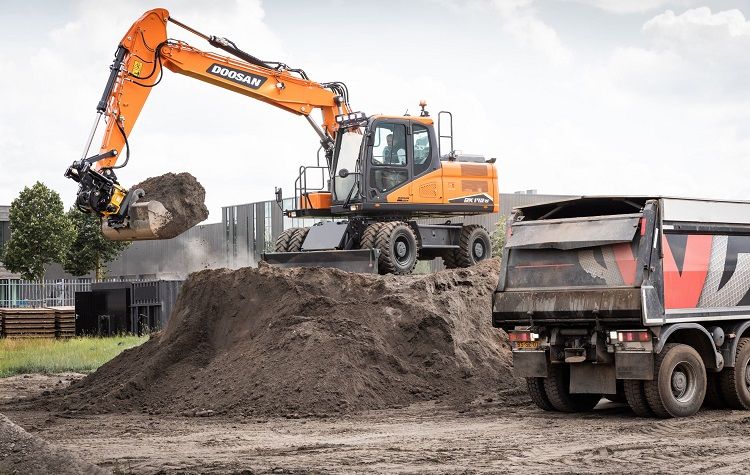

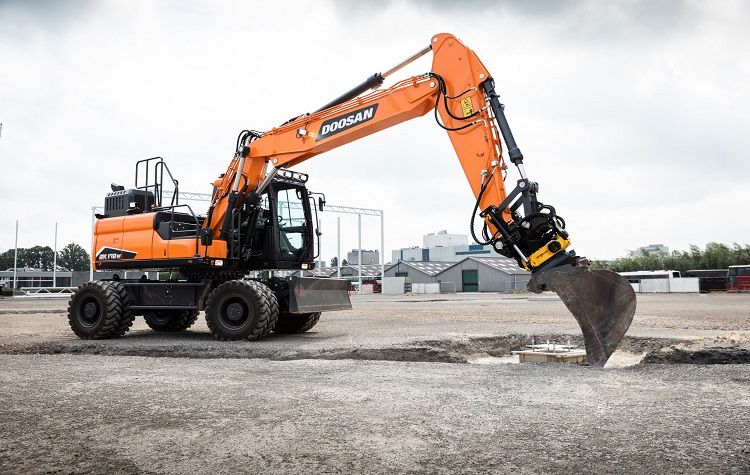

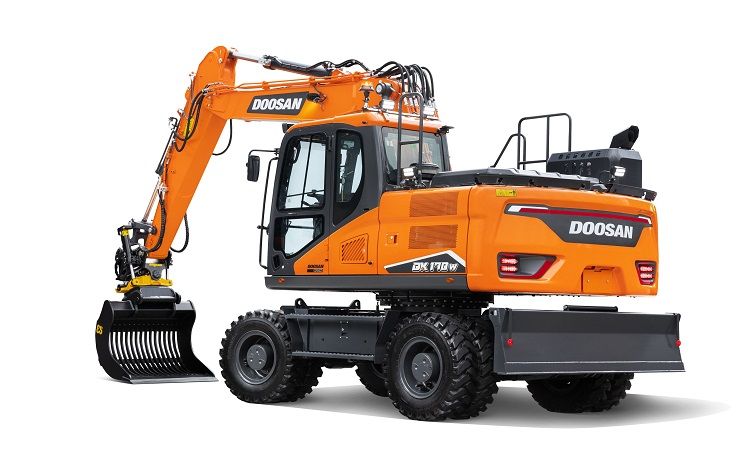

DevelonDX170W-7

New DX170W-7 Wheeled Excavator offers a host of redesigned features and new technologies to ensure smooth operation, superior productivity and stability, top class operator comfort and improved fuel efficiency. Reinforced castings and forged steel pivot points and reinforced heavy duty arm and boom to withstand high impact materials. Improved hydraulic line routing to protect your investment. Rear and right side cameras as standard, anti slip steps and platforms as well as guard rails on upper structure.

Specifications

Maximum power 152hp
Operating weight 17700kg
Bucket capacity 0.66
Emission standard Stage V
Engine Develon DL06V
Engine power 152hp @ 2000rpm
Overall width 2530mm
Wheel base  2650mm
Tread width 1944mm
Travel speed 3/ 10/ 37km/h
Maximum traction force 10800kg
Minimum turning radius 5872mm
Maximum swing speed 10.6rpm
Maximum swing torque 5825 kgf.m
Max. digging reach (Mono / Arti boom) 8525mm/ 8140mm
Max. digging depth (Mono / Arti boom) 4920mm/ 5820mm
Max. digging height (Mono / Arti boom) 8975/ 10210mm
