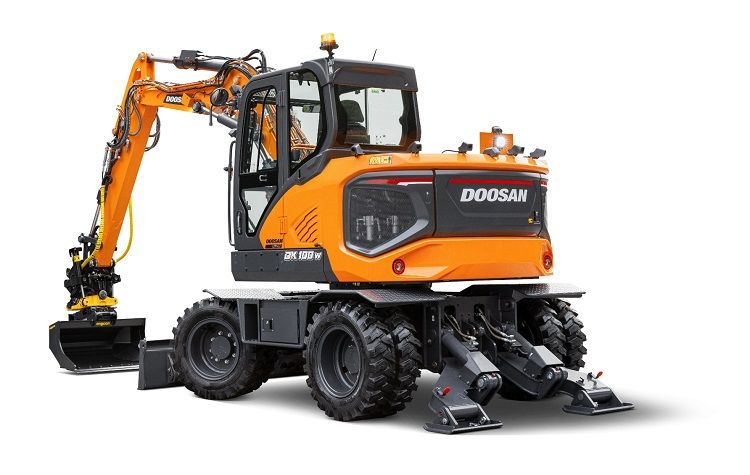

DevelonDX100W-7
|
Designed to deliver superior performance and fuel efficiency, the Develon D34 diesel engine fully meets the latest Stage V emission regulations. To optimize machine performance, the engine uses high pressure fuel injectors, air to air intercooler and electronic engine controls. 4 cycle water cooled, wastegate turbocharged, Diesel Oxidation Catalyst, Selective Catalytic Reduction and Diesel Particulate Filter. |
Specifications
| Maximum power | 100hp |
| Operating weight | 107-11100kg |
| Bucket capacity | 0.28m³ |
| Emission standard | Stage V |
| Engine | Develon D34 |
| Engine power | 100hp @ 2000rpm |
| Max swing speed | 10.5rpm |
| Max swing torque | 1820kgf.m |
| Max traction force | 4200kg |
| Minimum turning radius | 5738mm (4 wheel steering: 3697mm) |
| Gradeability | 70% |
