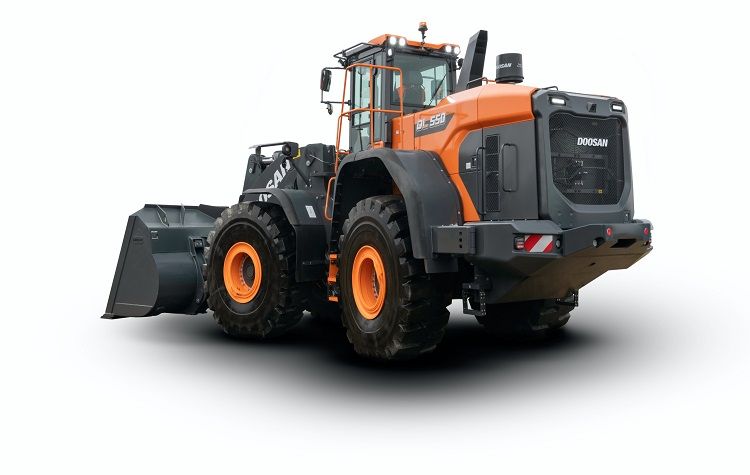

DoosanDL550-7

The DL550-7 wheel loader is designed for the largest material handling applications featuring a completely new design, providing higher performance increased fuel efficiency and a much enhanced enviroment for the operator compared to the previous stage IV model.

Exceptional power- combined with the finest workmanship- results in machines that perform at the highest level. The DL550-7 enhance your output from every angle. Impressive breakout force and high traction make penetration easy and allow you to tackle the hardest materials. Powerful hydraulic system makes work quick and efficient. The Scania DC13 engine provides the power you need while meeting Stage V environmental regulations.



Specifications

Operating weight 332 kg
Engine Scania DC13 Stage V
Engine power 380 hp
Main pumps max flow 480 l/min
Number of cylinders 6
Travel speed 37 km/h
Maximum traction 31 ton
Buckets 5.4 – 5.7m3
Sound level (internal / external) 71 dB(A) - 106 dB(A)
Overall width 3400 mm
Overall height 3863 mm
Overall length 9740 mm
Breakout force 206 kN

SPECIFICATIONS

Tipping Weight 24.5
Engine Power 380 HP
Bucket Capacity 5.4m³
Operating Weight 332 kg
