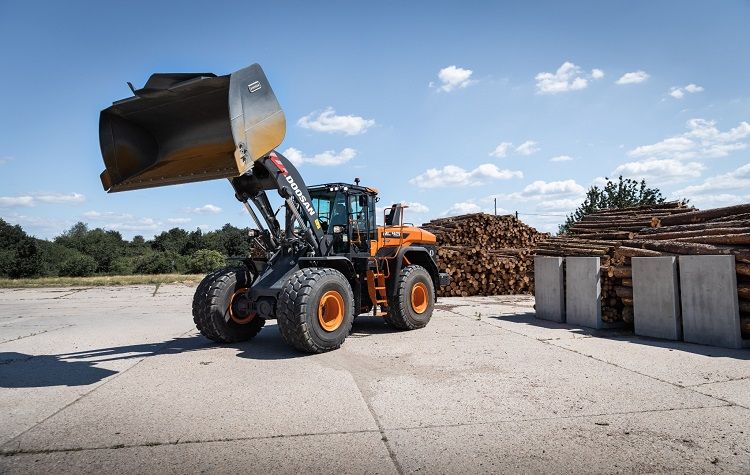

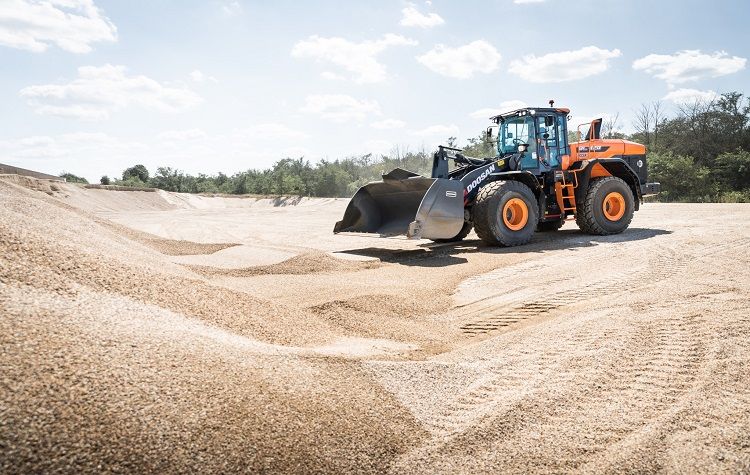

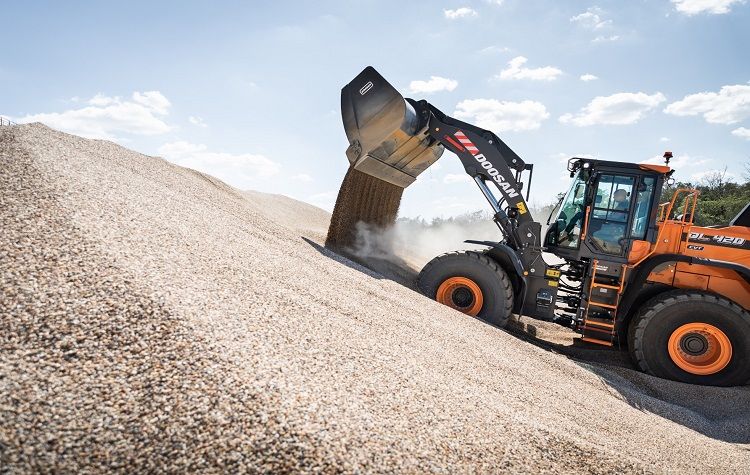

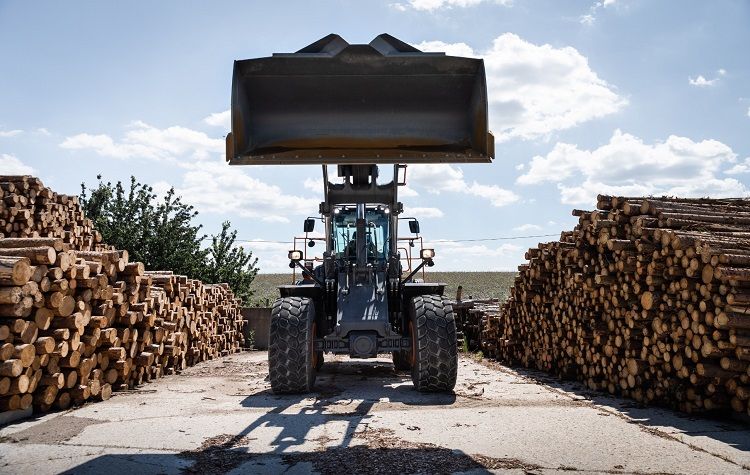

DoosanDL420CVT-7

The DL420CVT-7 enhances your output from every single angle. Impressive breakout force and high traction make penetration easy and allow you to tackle the hardest materials. Powerful hydraulic system makes work quick and efficient. Scania DC9 engine provides the power you need while meeting Stage V enviromental regulations. The combination of these features gives Doosan Wheel Loaders excellent penetration power, ensuring optimum bucket load in each cycle.

Specifications

Bucket capacity 4.5m3
Tipping load 18696kg
Statuc tipping load  16493kg
Length with bucket 8926mm
Width with bucket 3200mm
Height 3660mm
Dump height with bolt on cutting edge 2990mm
Dump reach with bolt on cutting edge 1320mm
Wheelbase 3525mm
Engine Scania DC9 Stage V (5-cylinder)
Operating weight 23990kg
Engine power 326hp
Breackout force 171Kn
