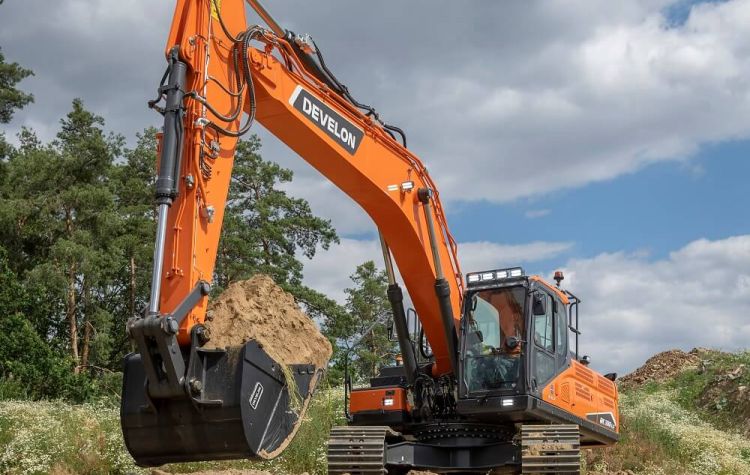

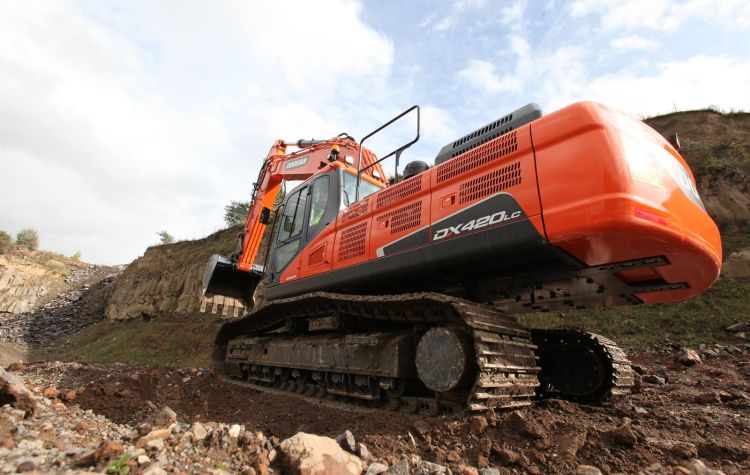

DevelonDX420LC-7K
The new DX420LC-7 is exceptionally powerful, yet environmentally friendly the D420LC-7 excavators feature extraordinary fuel efficiency. It delivers higher productivity and reduced fuel consumption in an efficient and comfortable work environment. The DX420LC-7 are ideally suited for special applications with a reach of 16 & 19.6 meters.
Specifications
| Operating weight | 43500 kg |
| Engine | Scania DC13 |
| Engine power | 344 hp |
| Main pumps max flow | 2 x 333 l/m |
| Number of cylinders | 6 |
| Travel speed | 3.2 / 5.3 km/h |
| Maximum traction | 43.4 ton |
| Buckets | 1.5 – 2.1 m³ |
| Sound level (internal / external) | 71 dB(A) - 106 dB(A) |
| Overall width | 3350 / 3000 mm (Narrow) |
| Overall height (Std Front) | 3455 mm |
| Overall length (Std Front) | 11750 mm |
| Tail swing radius | 3760 mm |
| Bucket digging force | 23.5 t |
| Arm digging force (Std Front) | 19.3 t |
| Max. digging reach (Std Front) | 12121 mm |
| Max. digging depth (Std Front) | 8335 mm |
| Max. digging height (Std Front) | 11045 mm |
SPECIFICATIONS
| Tipping Weight | 18.4 |
| Engine Power | 344 HP |
| Bucket Capacity | (SAE heaped, m³) 4.2 |
| Operating Weight | 43500 KG |
