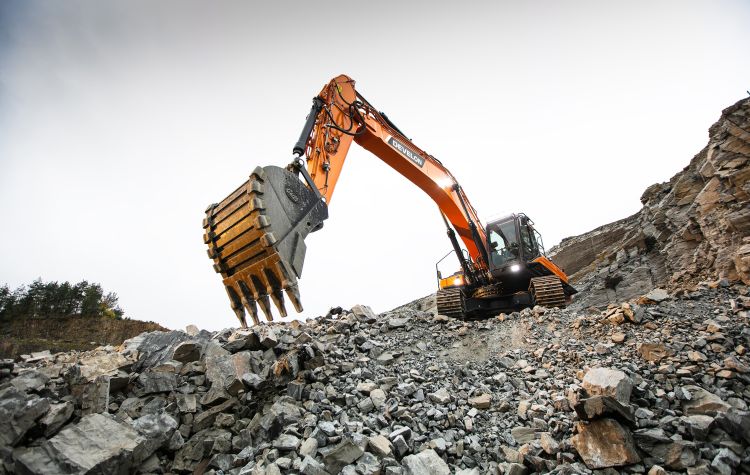

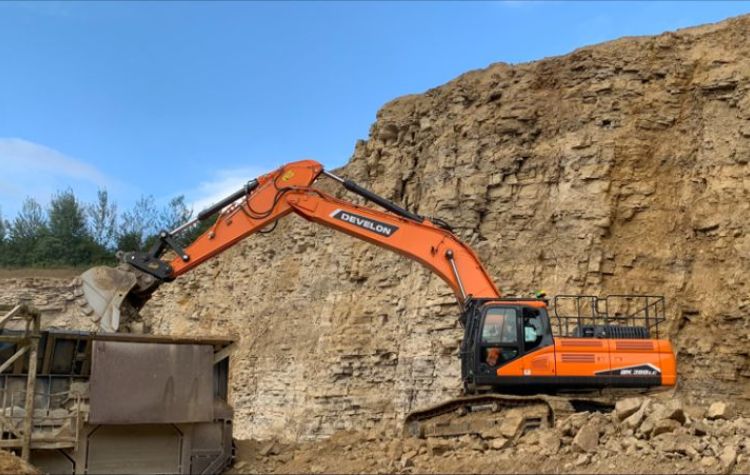

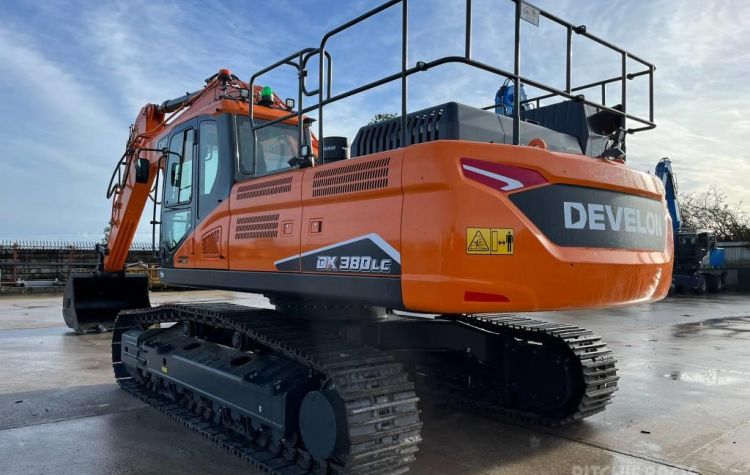

DevelonDX380LC-7K
The DX380LC-7K model features a new generation engine to meet the latest stage V engine emission. Exceptionally powerful yet environmentally friendly, the DX380LC-7 excavator features extraordinary fuel efficiency. The DX380LC-7 delivers higher productivity in an efficient and comfortable work environment. The model has a state of the art bucket and digging forces which increases its productivity.
Specifications
| Operating weight | 40200 kg |
| Engine | Scania DC09 |
| Engine power | 326hp |
| Main pumps max flow | 2 x 350 l/m |
| Number of cylinders | 5 |
| Travel speed | 3.0 / 5.4 km/h |
| Maximum traction | 43.4 ton |
| Buckets | 1.25 – 2.32 m3 |
| Sound level (internal / external) | 71 dB(A) - 105 dB(A) |
| Overall width | 3350 / 3000 mm (Narrow) |
| Overall height (Std Front) | 3390 mm |
| Overall length (Std Front) | 11280 mm |
| Tail swing radius | 3530 mm |
| Bucket digging force | 25.9 t |
| Arm digging force (Std Front) | 18.9 t |
| Max. digging reach (Std Front) | 11930 mm |
| Max. digging depth (Std Front) | 8165 mm |
| Max. digging height (Std Front) | 10940 mm |
