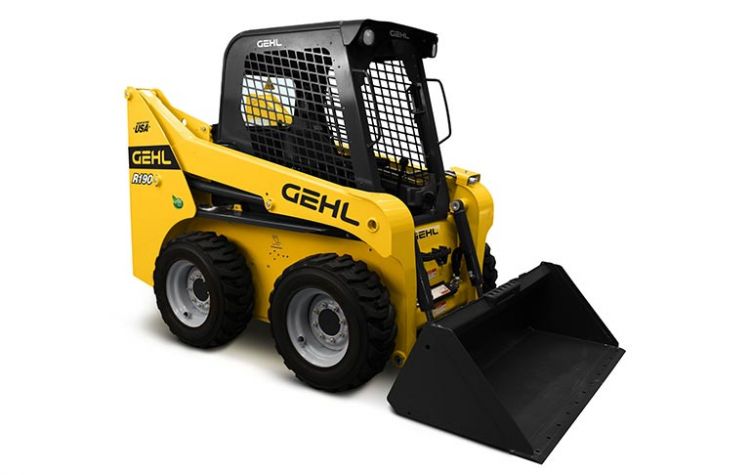

GehlGehl R190 Skid Loader GEN2
Rated Operating Capacity: 861 kg
Operating weight: 3172 kg
Power: 70 hp
Bucket Hinge Pin Height: 3022 mm
Specifications

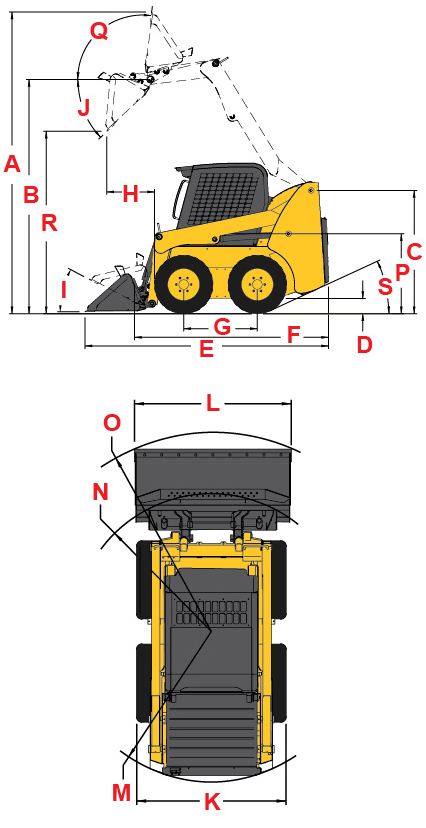

Dimensions |
|
|---|---|
| A Overall Operating Height - Fully Raised | 3886 mm |
| B Height to Hinge Pin - Fully Raised | 3022 mm |
| C Overall Height to Top of ROPS | 1955 mm |
| D Ground Clearance to Chassis | 160 mm |
| E Overall Length with Bucket | 3251 mm |
| F Overall Length without Bucket | 2446 mm |
| G Wheelbase | 1066 mm |
| H Dump Reach - Fully Raised | 584 mm |
| I Rollback at Ground | 28° |
| J Dump Angle | 38° |
| K Overall Width | 1574 mm A |
| L Bucket Width | 1676 mm |
| M Clearance Circle - Rear | 1511 mm |
| N Clearance Circle - Front without Bucket | 1168 mm |
| O Clearance Circle - Front with Bucket | 2032 mm |
| P Seat to Ground Height | 904 mm |
| Q Rollback at Specified Height | 99° |
| R Dump Height | 2387 mm |
| S Departure Angle | 25° |
| Standard Specification Tire Size | 10.00 x 16.5 HD |
Engine |
|
| Make | Yanmar |
| Model | 4TNV98C Stage 3A |
| Gross Power @ 2500 rpm | 51.6 kW |
| Net Power @ 2500 rpm | 51 kW |
| Maximum Torque | 241 Nm @ 1650 |
| Displacement | 3.3 L |
Hydraulic System |
|
| Auxiliary Hydraulics - Standard | 70 L/min |
| High-Flow Auxiliary Hydraulics - Option | 113 L/min |
| Reservoir Capacity | 35 L |
Electrical System |
|
| Battery | 950 CCA |
| Starter | 3.0 kW |
| Alternator | 95-amp |
Capacities/Weights |
|
| Rated Operating Capacity B | 861 kg |
| Rated Operating Capacity with Optional Counterweight B | 957 kg |
| Fuel Tank | 58 L |
| Travel Speed - Maximum | 12.5 km/hr |
| Travel Speed with Two-Speed Option - Maximum | 19.4 km/hr |
| Operating Weight C - Approximate | 3172 kg |
A - Narrow width with off-set wheel option
B - Per SAE J818, SAE J732, and ISO 14397
C - Weight of base unit with standard equipment, standard tires (heavy-duty flotation), standard dirt-construction bucket and 79 kg operator.
