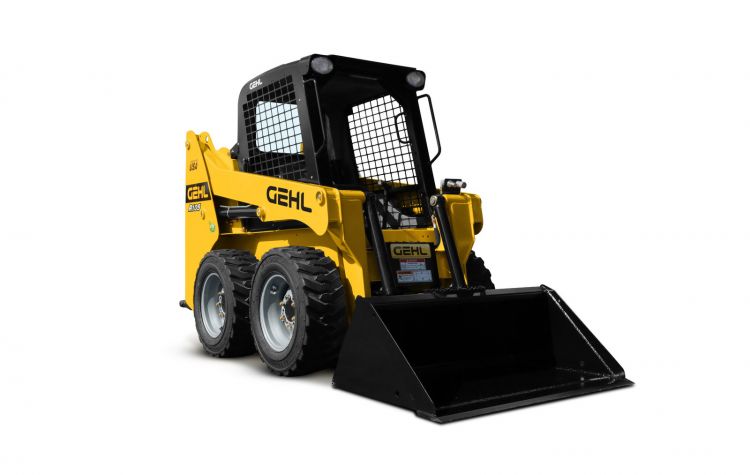

GehlGehl R105 Skid Loader
Rated Operating Capacity: 533 kg
Operating weight: 1905 kg
Power: 35 hp
Bucket Hinge Pin Height: 2746 mm
Specifications

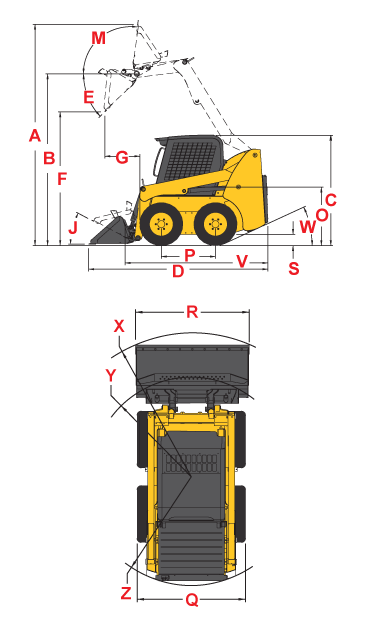

Dimensions |
|
|---|---|
| A Overall Operating Height - Fully Raised | 3546 mm |
| B Height to Hinge Pin - Fully Raised | 2731 mm |
| C Overall Height to Top of ROPS | 1786 mm |
| D Overall Length with Bucket | 2896 mm |
| E Dump Angle at Full Height | 42° |
| F Dump Height | 2146 mm |
| G Dump Reach at Full Height | 579 mm |
| J Rollback at Ground | 29° |
| M Rollback Angle at Full Height | 99° |
| O Seat to Ground Height | 828 mm |
| P Wheelbase | 876 mm |
| Q Overall Width - Less Bucket A | 1229 mm |
| R Bucket Width | 1404 mm |
| S Ground Clearance to Chassis | 152 mm |
| V Overall Length - Less Bucket | 2258 mm |
| W Departure Angle | 26° |
| X Clearance Circle – Front w/ Bucket | 1763 mm |
| Y Clearance Circle – Front w/o Bucket | 1120 mm |
| Z Clearance Circle – Rear | 1374 mm |
| Standard Specification Tire Size | 27x8.5 x 15 HD |
Engine |
|
| Make | Yanmar |
| Model | 3TNV88C-KMS Tier IV |
| Gross Power @ 2500 rpm | 25.5 kW |
| Net Power @ 2500 rpm | 24.7 kW |
| Maximum Torque | 109.4 Nm @ 1820 |
| Displacement | 1.6 L |
Hydraulic System |
|
| Auxiliary Hydraulics - Standard | 55 L/min |
| High-Flow Auxiliary Hydraulics - Option | N/A |
| Reservoir Capacity | 30.3 L |
Electrical System |
|
| Battery | 675 CCA |
| Starter | 2.3 kW |
| Alternator | 40-amp |
Capacities/Weights |
|
| Rated Operating Capacity B | 476 kg |
| Rated Operating Capacity with Optional Counterweight B | 533 kg |
| Fuel Tank | 39.4 L |
| Travel Speed - Maximum | 9.5 km/hr |
| Travel Speed with Two-Speed Option - Maximum | N/A |
| Operating Weight C - Approximate | 1814 kg |
A - Overall width is dependent upon the amount of wheel offset.
B - Per SAE J818, SAE J732, and ISO 14397
C - Weight of base unit with standard equipment, standard tires (heavy-duty flotation), standard dirt-construction bucket and 79 kg operator.
