New Equipment Model

New Equipment Model

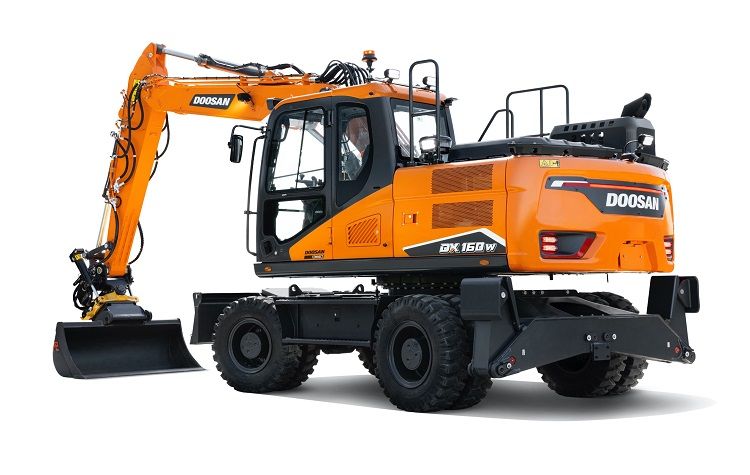

One of the most spacious cabs in the market, with low noise & vibration levels and excellent all round visibility. Thanks to optimized weight distribution,longer wheelbase cast counterweight and optional heavier counterweights for the biggest attachments the DX-7 series offers excellent stability for confidence and peace of mind in all situations. The DX160W-7 is equipped with the latest generation Develon engine Stage V compliant this engine boasts extremely low emissions.


Maximum power 137hp
Operating weight 17000kg
Bucket capacity 0.59
Emission standard Stage V
Engine Develon DL06V
Engine power 137hp @ 2000rpm
Overall width 2500mm
Wheel base  2800mm
Tread width 1944mm
Travel speed 3.5/ 10/ 37km/h
Maximum traction force 8100kg
Minimum turning radius 65m
Maximum swing speed 1.8rpm
Maximum swing torque 3744 kgf.m
Max. digging reach (Mono / Arti boom) 7585mm/ 8700mm
Max. digging depth (Mono / Arti boom) 4490mm/ 5455mm
Max. digging height (Mono / Arti boom) 8195mm/ 9655mm
