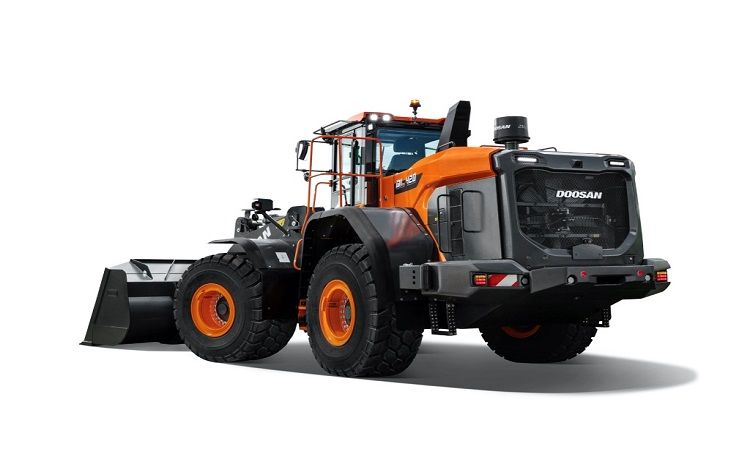

DoosanDL420-7

Powered by a powerful Stage IV diesel engine, the DL420-7 wheel loader penetrates tough materials, tilts and lifts with ease, and carries more in every cycle. Performance features include a powershift transmission with optimised hydraulic pumps, multiple engine power modes, Z-bar lift arm, automatic return to dig, and limited slip differentials on both front and rear axles.

The DL420-7 introduces a fresh look for the Doosan wheel loader range, with a brand new spacious, ergonomic cab and innovative features for higher productivity, increased controllability and operator comfort

Specifications

Operating Weight 23400 kg
Bucket capacity 4.5 m3
Engine type Scania DC13, Stage V
Rated engine performance (SAE J1995 gross) 345hp
Max. torque at rpm 2196 Nm @ 1,100 rpm
Breakout force 171 kN
Static tipping load (straight / 40°) 19,347 / 17,334 kg
Std. tyres 26.5 R25 (L3)
Turning radius (tyre edge / bucket edge) 6,388 / 7,146 mm
Height at bucket pivot point mm 4,265 mm

SPECIFICATIONS

Tipping Weight 18.69 kg
Engine Power 345 HP
Bucket Capacity 4.5m³
Operating Weight 23.9 kg
