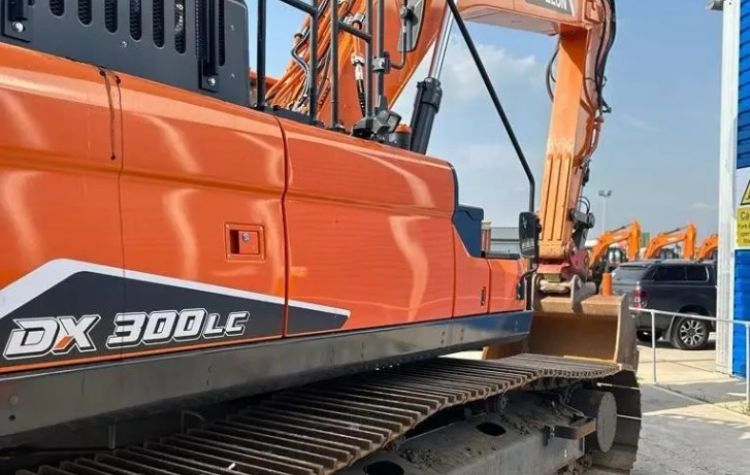

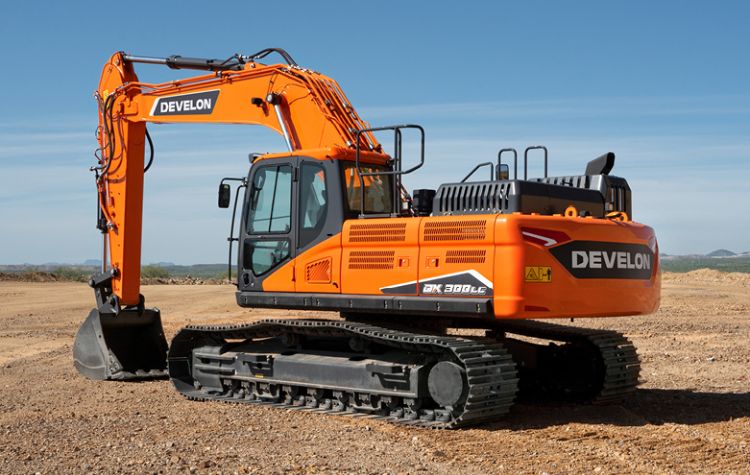

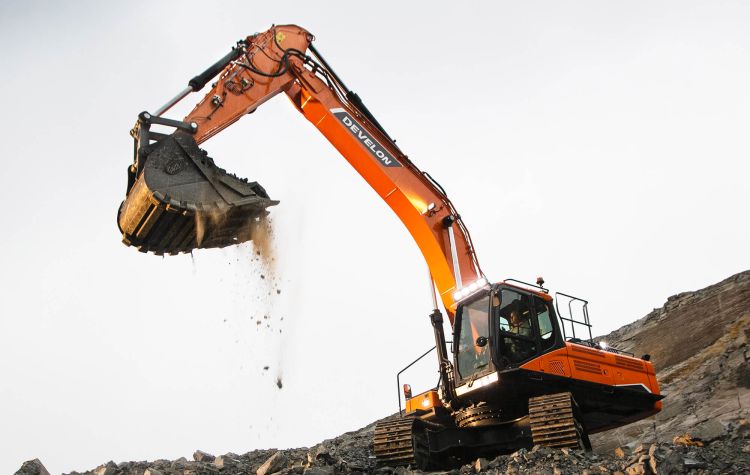

DevelonDX300LC-7
Develon's DX300LC-7 offers an unmatched combination of high performance, operating features, fuel efficiency, reliability and durability in the 30 tonne excavator class.
The new LC-7 excavators introduce major enhancements in operator comfort, machine controllability, productivity, uptime and return on investment, with a strong focus on low fuel consumption, increased power, robustness and versatility.
Specifications
| Operating weight | 30300 kg |
| Engine | DL08V |
| Engine power | 271 hp |
| Main pumps max flow | 2 x 248 l/m |
| Number of cylinders | 6 |
| Travel speed | 3.0 / 5.5 km/h |
| Maximum traction | 35 ton |
| Buckets | 0.80 – 1.75 m3 |
| Sound level (internal / external) | 71 dB(A) - 104 dB(A) |
| Overall width | 3200 / 3000 mm (Narrow) |
| Overall height (Std Front) | 3455 mm |
| Overall length (Std Front) | 10705 mm |
| Tail swing radius | 3230 mm |
| Bucket digging force | 20. t |
| Arm digging force (Std Front) | 12.4 t |
| Max. digging reach (Std Front) | 11240 mm |
| Max. digging depth (Std Front) | 7950 mm |
| Max. digging height (Std Front) | 10405 mm |
SPECIFICATIONS
| Engine Power | 271HP |
| Operating Weight | 30.3 kg |
