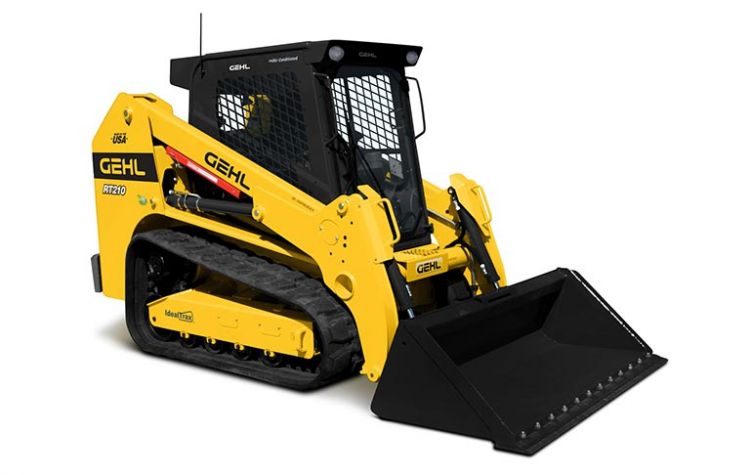

GehlGehl RT210 Track Loader

Rated Operating Capacity 35%: 953 kg

Rated Operating Capacity 50%: 1361 kg

Tipping Load: 2722 kg

Operating weight: 4445 kg

Power: 72 hp

Bucket Hinge Pin Height: 3251 mm

Specifications

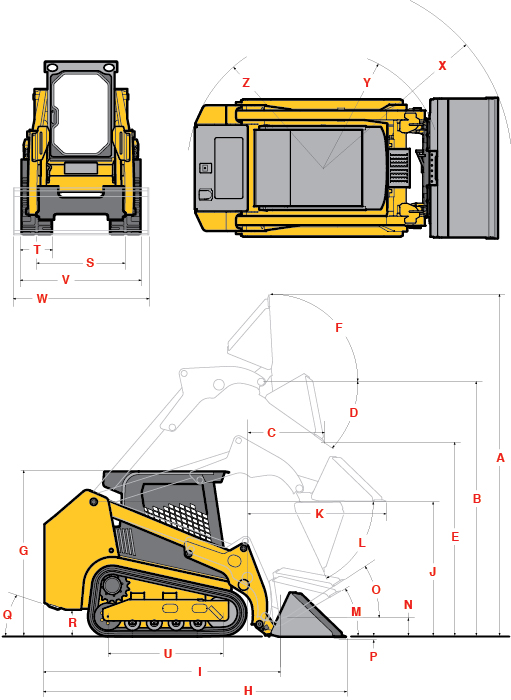

Dimensions

A   Overall Operating Height - Fully Raised 4267 mm
B   Height to Hinge Pin - Fully Raised 3251 mm
C   Reach - Fully Raised 876 mm
D   Dump Angle - Fully Raised 39°
E   Dump Height - Fully Raised 2489 mm
F   Maximum Rollback Angle - Fully Raised 102.5°
G   Overall Height at ROPS 2111 mm
H   Overall Length with Bucket - Standard Counterweight 3762 mm
I   Overall Length without Bucket - Standard Counterweight 2959 mm
J   Specified Height 1720 mm
K   Reach at Specified Height 795 mm
L   Dump Angle at Specified Height 75°
M   Maximum Rollback Angle at Ground 30°
N   Carry Position 208 mm
O   Maximum Rollback Angle at Carry Position 31.6°
P   Digging Position - Below Ground 16 mm
Q   Angle of Departure with Standard Counterweight 29.2°
R   Ground Clearance 335 mm
S   Track Gauge 1313 mm
T   Track Shoe Width 450 mm
U   Crawler Base 1483 mm
V   Overall Width - Less Bucket 1765 mm
W   Bucket Width 1877 mm
X   Clearance Radius - Front With Bucket 2403 mm
Z   Clearance Radius - Rear with Standard Counterweight 1641 mm
Maximum Rollback at Specified Height  66.8°
Angle of Approach 90°
Grouser Height 25 mm

Capacity

Operating Capacity at 35% Tipping Load 953 kg
Operating Capacity at 50% Tipping Load 1361 kg
Tipping Load 2722 kg
Operating Weight 4486 kg

Engine

Make/Model Yanmar/4TNV98TCT-NMSL Tier IV
Type 4-Stroke Turbo
Displacement/Cylinders 3.3 L/4
Gross Power @ rpm 53.7 kW @ 2500
Net Power @ rpm 52.7 kW @ 2500
Peak Torque @ rpm 279.3 Nm @ 1700
Oil Pump Capacity 10.4 L
Alternator Voltage/Amperage 14V/95A

Track Drives

Drawbar Pull/Tractive Effort 5211 kg
Track Type/Track Rollers/Roller Type Rubber/5/Steel
Track Width 450 mm
Ground Pressure 0.32 bar

Forces

Bucket Breakout - Tilt Cylinder 3008 kg
Bucket Breakout - Lift Cylinder 2940 kg
Ground Speed - Single Speed 9.8 km/hr
Ground Speed - Two Speed 14.3 km/hr

Volume

Fuel Tank 91 L
Hydraulic Reservior Tank 52.2 L
Coolant Capacity 14.4 L

Hydraulics

Auxiliary Hydraulic Flow - Rated Speed 82.5 L/min
Hight-Flow Hydraulic Flow - Rated Speed 135.8 L/min
Transmission Pump Type Axial Piston
Motor Type Axial Piston with Planetary Gear Box Reduction

Electronic System

Battery Volts 12V
Cold Cranking Amps at Temperature 850 CCA @ -18°C
