Compact and Robust – The winning combination

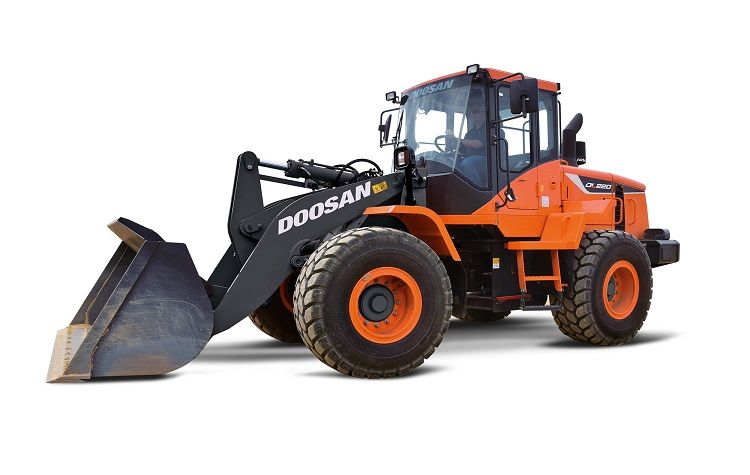

The DL220-5 wheel loader provides excellent manoeuvrability in narrow and confined spaces, and with the wide selection of attachments available, it can handle a very wide range of applications to meet all your expectations.

Thick DL220-5 lift-arm plates provide strength without sacrificing visibility − and the plates, chassis and joints have been analysed using finite element techniques to confirm their durability.

The model is manufactured with a Z-bar lift-arm linkage and is ideal for scooping, loading, carrying and general construction tasks. For operators requiring additional dumping capabilities, the DL220-5 is also available with a high-lift configuration, which extends the dump height.


Operating weight 13545 kg
Bucket capacity 2,2 m3
Engine type 6 cylinders – EU Stage IV compliant
Max. engine performance (SAE J1995 gross) 160 hp
Max. torque 735 Nm at 1.400 rpm
Static tipping load (straight / at full turn) 9.705 kg / 8.570 kg
Height at bucket pivot point (Standard lift / High lift) 3.860 mm / 4.300 mm
Breakout force 102 kN
Standard tyres 20.5 R25
Wheelbase 3010 mm
Turning radius (tyre side / bucket edge) 5475 mm / 5950 mm
Overall length 7445 mm
Overall height 3280 mm
