Combining Softness and Power for Working Satisfaction

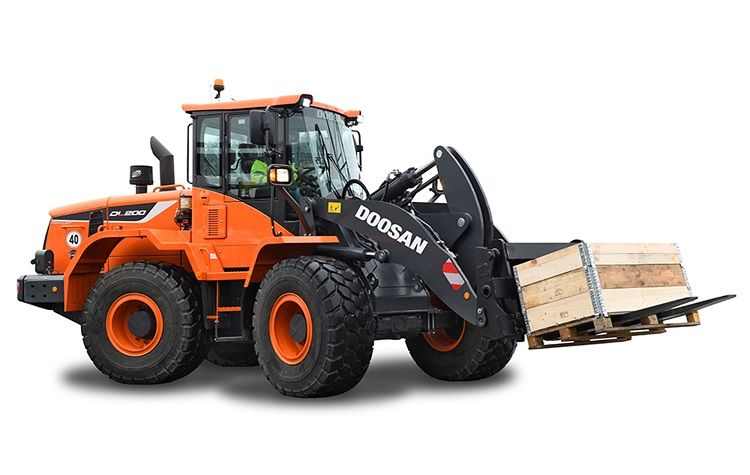

Compact and robust, the Doosan DL200-5 wheel loader provides excellent manoeuvrability in narrow and confined spaces − and, with the wide selection of attachments available, it can handle a very wide range of applications, including work in sand pits, concrete plants, road construction, water and sewer projects, waste management and recycling, agriculture, foods and industry.

The Doosan DL200-5 saves on fuel consumption too. Operators can choose between 3 engine modes − simply by pushing a button to toggle between modes − to adjust performance to the application and work with the right balance of power and fuel economy.


Operating weight 11640 kg
Bucket capacity 1,9 m3
Engine type 4 cylinders – EU Stage IV compliant
Max. engine performance (SAE J1995 gross) 142 hp
Max. torque 560 Nm at 1.400 rpm
Static tipping load (straight / at full turn) 9.635 kg / 8.510 kg
Height at bucket pivot point (Standard lift / High lift) 3.730 mm / 4.200 mm
Breakout force 100 kN
Standard tyres 20.5 R25
Wheelbase 2.900 mm
Turning radius (tyre side / bucket edge) 5.245 mm / 5.795 mm
Overall length 7.135 mm
Overall height 3.280 mm


Tipping Weight 11,460
Engine Power 142hp
Bucket Capacity (SAE heaped m³) 1.9
